Product Name:    Honda Diagnostic System kit
Part No.:              A105
Net Weight:         3.5KG

Description:

This interface module kit works with the OEM-Honda Diagnostic PC Software (HDS). It can diagnose all Honda and Acura vehicle systems on models from 1992 to year 2008, including CAN-BUS system.

Functions supported by Honda/Acura protocols:

Reading and decoding fault codes from control blocks' memory;
Deleting fault codes;
Displays system's current parameters in digital form;
Displays system's current parameters in graphical form;
Combined displaying of data;
Management of executive devices;
Logs keeping - writing and keeping of digital parameters in memory;
Special functions - changing of permissible settings of blocks, programming etc.

Functions supported by OBD-II protocols:

Mode 1 - Displays system's current parameters in digital form (up to 8 parameters at once);
Mode 2 - Displays parameters of "freeze" frame;
Mode 3 - Reading and decoding of fault codes from control block's memory;
Mode 4 - Deleting of fault codes (memory clearing);
Mode 5 - Displays results of oxygen sensors;
Mode 6 - Displays results of changeably controled systems and components;
Mode 7 - Displays results of constantly controled systems and components;
Mode 8 - Management of executive devices;
Mode 9 - Displays car's identification info.

Hardware and software requirements:

PC or laptop with either Windows 2000 Professional (SP4 or later) or XP (SP1 or later)
Hard disk drive with at least 400MB of free space
CD-ROM drive (if a high-speed Internet connection is not available)
RS232 port required to connect PC to HIM (PC version software only)
Monitor capable of displaying in VGA mode or above (1024 x 768 recommended)
Internet connection (high-speed connection recommended)

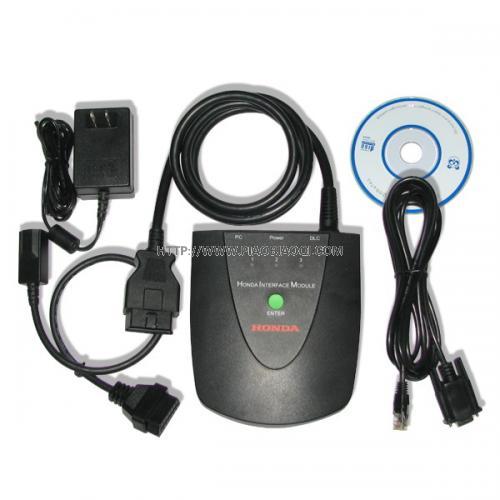

Honda Diagnostic System kit includes:

1 x HIM with OBD II Cable
1 x DVD
1 x 3 Pin Cable
1 x RS232 Cable
2 x Selftest Adapter
1 x Storage Case
