本田专用检测仪

本产品是为汽车修理厂打造的本田专用车辆故障检测诊断设备，采用有线技术实现，同时支持串口和USB2.0。

·

HONDA INTERFACE MODULE是HONDA公司最新的检测仪器，软件覆盖1992年到最新生产的HONDA/ACURA所有车型，支持检测的系统包括：动力、车身、底盘、ABS、SRS、防盗等，并支持CAN数据总线车型，能够对汽车控制模块进行重新编程。HIM采用PC作为工作平台，通过HIM通讯模块与车辆进行通讯，中文操作界面，是检测本田汽车最理想的工具。

产品功能:HONDA INTERFACE MODULE是HONDA公司最新的检测仪器，软件覆盖1992年到最新生产的HONDA/ACURA所有车型。

支持检测的系统包括：动力、车身、底盘、ABS、SRS、防盗等，并支持CAN数据总线车型，能够对汽车控制模块进行重新编程。
HIM采用PC作为工作平台，通过HIM通讯模块与车辆进行通讯，中文操作界面，是检测本田汽车最理想的工具。

检测系统：
动力燃油喷射　
自动变速箱
安全气囊
防盗/防启动
防抱死系统
牵引控制系统
汽车稳定系统
4轮轮转向
扭矩变换器系统
电动助力转向
牵引模块
无钥匙进入
轮胎压力监控系统
控制模块
故障码
冻结数据框
集成的马达辅助
超级操纵-全部轮驱动
主要功能:
读故障码，清故障码
读数据流
<绘制数据流趋势曲线
系统设定
控制单元编程
自动检侧仪器内部状态
记录和回放
双向控制功能--在驱动执行元件同时，读取响应数据

产品特点:
1、有故障码冻结帧数据，可分析故障发生时数据，方便维修
2、有完善的动作测试及波形显示功能
3、可对现实数据和标准数据对比，分析故障
4、当系统存在故障时可通过仪器故障引导进行维修，相当于你请了一个专家一样，快捷准确
5、产品支持语言：加拿大，欧洲，美国，日本等区域所使用的语言

产品配置:
1 HIM主机1台(OBDII线)
2 DVD光盘1张
3 3Pin线条,Lin网线(RS232接头) 1根 电源1个
HIM (Honda & Acura Diagnostic System)is the latest diagnostic equipment for Honda vehicles. Diagnostic functions available for vehicles of HONDA/ACURA from year 1992 to2007.Test coverage: Dynamical, Body, Chassis, ABS, SRS, Anti-theft, etc. It supports CAN BUS system, and it can re-program the Auto ECU. This HIM is based on PC operation platform.

Honda  Diagnostic System HDS

Description:

HIM (Honda & Acura Diagnostic System)is the latest diagnostic equipment for Honda vehicles. Diagnostic functions available

for vehicles of HONDA/ACURA from year 1992 to2007.Test coverage: Dynamical, Body, Chassis, ABS, SRS, Anti-theft, etc. It

supports CAN BUS system, and it can re-program the Auto ECU. This HIM is based on PC operation platform.

Function:

1.Functions supported by Honda/Acura protocols

1) Reading and decoding fault codes from control blocks memory
2) Deleting fault codes
3) Displays system current parameters in digital form
4) Displays system? current parameters in graphical form
5) Combined displaying of data
6) Management of executive devices
7) Logs keeping - writing and keeping of digital parameters in memory
8) Special functions - changing of permissible settings of blocks, programming etc.

2.Functions supported by OBD-II protocols

1) Mode $01 - Displays system current parameters in digital form (up to 8 parameters at once);
2) Mode $02 - Displays parameters of freeze frame;
3) Mode $03 - Reading and decoding of fault codes from control block? memory;
4) Mode $04 - Deleting of fault codes (memory clearing);
5) Mode $05 - Displays results of oxygen sensors;
6) Mode $06 - Displays results of changeably controlled systems and components;
7) Mode $07 - Displays results of constantly controlled systems and components;
8) Mode $08 - Management of executive devices;
9) Mode $09 - Displays car identification info.

Hardware and software requirements:

PC or laptop with either Windows 2000 Professional (SP4 or later) or XP (SP1 or later). Hard disk drive with at least 400MB

of free space
CD-ROM drive (if a high-speed Internet connection is not available)
RS232 port required to connect PC to HIM (PC version software only)
Monitor capable of displaying in VGA mode or above (1024 x 768 recommended)
Internet connection (high-speed connection recommended)

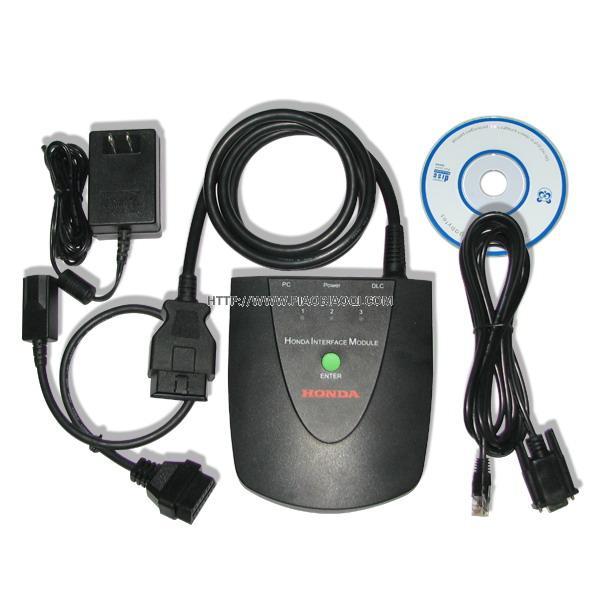

Package list:

1pc x HIM with OBDII Cable
1pc x DVD
1pc x 3 Pin Cable
1pc x RS232 Cable
